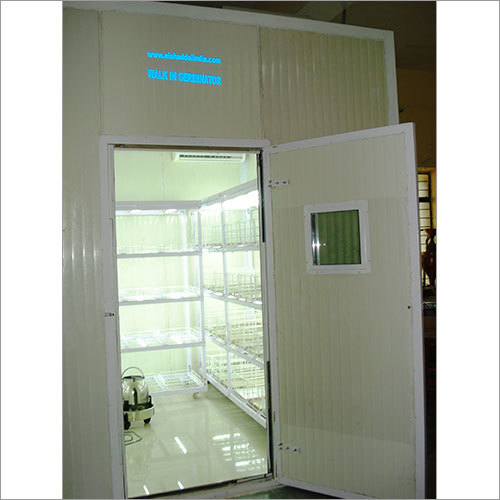

Walk In Germination Chamber

Walk In Germination Chamber
Walk In Germination Chamber
Product Code : 35
Product Description

Ever since our establishment, we are rated as an eminent manufacturer of high quality Walk In Germination Chamber. Our diligent personnel use top-notch raw material which is procured from some of certified dealers in the industry. Used in varied industrial applications, this Walk In Germination Chamber is duly checked by our well-experienced professionals in order to ensure its sturdy construction, precise dimension, superior finish, corrosion resistance and long life.

Technical Specification:

Construction

  • Room Size:- 10'x10'x7' (LXBXH feet)
  • Mild Steel angular frame construction within the room to mount PUF insulated Panels
  • For sandwich panel-glamet
  • g4 external steel wall facing of 0.5mm thick and internal steel wall facing 0.4mm thick the coating on both the steel facings shall be smp on base metal that is galvalume  thickness in mm 30 mm
  • PUF  construction  door with glass window  on heavy hinges and lock
  • Wall mounted Digital Temperature and Humidity Indicator with all controls and Indicators externally near the door for easy access and operation.
  • Temperature can be controlled from 5 oC above ambient to 60 oC with an accuracy of +1 oC
  • Humidity can be controlled up to 95% RH with an accuracy of + 5%

RACKS

  • 1 8.2' x 2' x 6.5' Growth racks to hold 20 Nos 2' tubes
  • Suitable to hold 40 trays  of size :- 650 x360x210mm

TRAYS

  • PTFE coated trays   Size:-650x 360x210 mm (LXDXH)
  • Aluminum inner trays for the above -

ELECTRICAL FITTINGS

  • 2' Fluorescent tubes 40 Nos.
  • Externally mounted Electronic choke Philips -40 Nos.
  • MS powder coated cabinet with exhaust fan system to mount Electronic Ballast
  • 4KVA Voltage stabilizer ' 1 No.
  • Control panel MS Powder coated ' 1No
  • All electrical fittings like Contactors, MCB's, Timers with single key operation
  • Electrical fitting to mount Humidifiers and room heaters
  • Racks Individual row on off felicity externally
  • Humidifier and room heater on off felicity externally
  • Thermostatic digital controller externally to automate room heater

AIR CONDITIONERS

Split AC with Voltage stabilizer 1.5TR

HUMIDIFIERS AND ROOM HEATERS

  • Aerosol Room Humidifiers stainless steel with high pressure blower' one/ two Nos.
  • Room heater with Air circulation facility

Safety Systems
The system is fitted with fool proof safety system to protect over temperature and Low temperature.

Optional
Any civil work including flooring plumbing plastering external electrical will be charged extra
