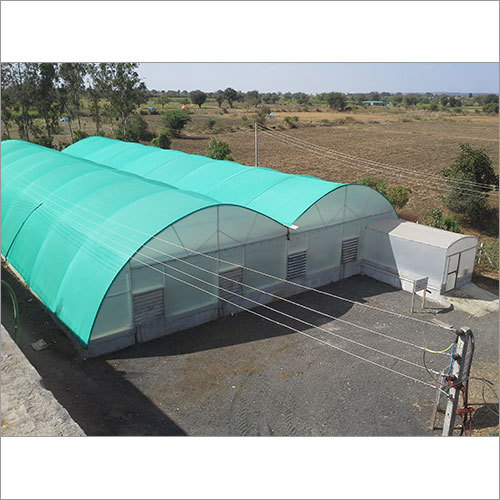

Poly House (1200 Sq Ft.)

Poly House (1200 Sq Ft.)
Poly House (1200 Sq Ft.)
Product Code : 27
Product Description

As a master manufacturer in the industry, we are bringing forth our respected clients an exquisite Poly House (1200 Sq Ft.). Made out of top-notch raw material with the help of cutting-edge technology, this house is required in various applications comprising planting material acclimatization, off-season growing of fruits & vegetables and so on. Acknowledged for high durability, easy installation, eco-friendliness and temperature resistance, clients can avail this Poly House (1200 Sq Ft.) at marginal prices from us.

Features:

  • Size of Shed house: 50 Sqmtr & above.
  • Anteroom - 5mx4m=20m sq.

Technical specification

Particulars

Details

Centre height

5m

Slope of gutter

1% to 1.5%

Design

Forced vent top and side closed

Civil foundation

Telescopic insertion

Structure

Entire structure is made of GI tubes

Fixing

In bolted form and joints through GI/MS clamps and bracket

Poly fixtures

UV stabilized LDPE white film

Ventilation

Through fan and pad only

Door

Aluminum frame with poly carbonate and alu. Panel with door closure

Auto panel

Fitted with temperature and humidity control digital with auto run system

Fogging system

4 way foggers with anti lockage with weight discharge 7 lit/min

PVC pipe line

6kg/cm PVC pipe line size as required

Water filter

Imported disc filter

Cooling fans

Size 50"

Cooling pads

Size - 5'x2'x4"

Pad frame

GI/ Au

Shed net

50% green / white for inside, 35% for top over UV sheet

Optional

Particulars

Details

Plinth wall

1.5ft width 9" abobe GL for both sides of length

Fan foundation wall

9' at fan base -2 nos, 14" front side, 3ft above GL

Cooling pad foundation wall

14" wall with water channel for pad out let height up to 3 ft above GL

water tank

Sintex or similar with cover

Motor pumps

Open well submersible pumps for pad 1.0 HP3 phase head and 1.0 HP3 ph head for foggers
