Product Description

LAMINAR AIR FLOW CABINET (Horizontal/Vertical)

Construction:
The cabinets are fabricated out of  mild steel duly epoxy/ Powder coated. Or fully SS 304/ 316 the work table is made of S. S 304/316. All joints are sealed with solstice sealant. Side panels are provided of thick transparent acrylic sheets/ Glass. The unit is fitted with pre-filter and the ambient air is made to pass through highly effective HEPA (High Efficiency Particular Air) filter having efficiency rating as high as 99.997% with hot, DOP, thus retaining all air-borne particles of size : 0.3 micron and larger.

The blower and motor assembly is statically and dynamically balanced. Blowers are spring mounted to minimize vibration. The working area is illuminated by diffused fluorescent lightings fitted to the unit. The pressure is measured by static pressure manometer, fitted with one No. U.V Lamp, Gas cock, and Glass bead sterilizer as optional. Height of the working table provides comfortable “Sit Down” working position for the operation to work on Fitted with castor wheel for easy mobility and screw stoppers for aligning the unit.

Power Supply220/230 volts AC.50 Hz

Specification:

HEPA Efficiency

99.997% at 0.3 microns with DOP test

Pre-filter

Washable with an arrestance up to 90% at 5 microns

Air Velocity

90FPM +-20%

Sound Level

60-65 decibels

Illumination

900 - 1300 Lux

Cleanliness

Class 100



Standard Models:-

HORIZONTAL                                                                  VERTICAL



Model

HEPA

ELFH-1SS

2’x2’

ELFH-2SS

3’x2’

ELFH-3SS

4’x2’

ELFH-4SS

6’x3’

Model

HEPA

ELFV-1SS

2’x2’

ELFV-2SS

3’x2’

ELFV-3SS

4’x2’

ELFV-4SS

6’x3’

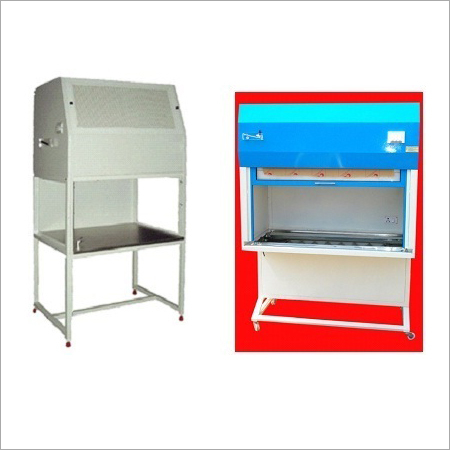

Horizontal                               Vertical
