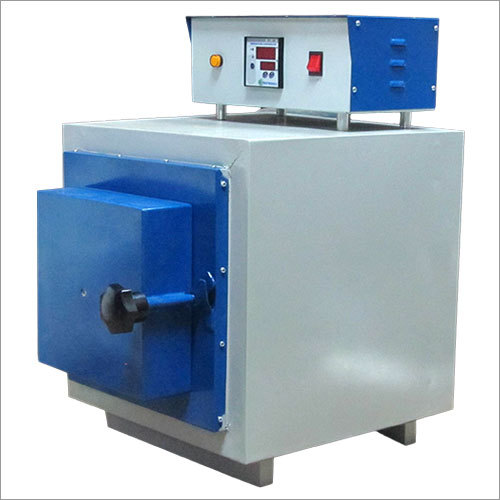

High Temperature Muffle Furnace

High Temperature Muffle Furnace
High Temperature Muffle Furnace
Product Code : 11
Product Description

We are a recognized High Temperature Muffle Furnace manufacture in Bengaluru (India). It is utilized in diverse industries such as Industrial, Medical research and others. This muffle furnace is designed for quick heat-up & reduced energy consumption. Known for excellent performance, high quality and long life, this High Temperature Muffle Furnace is supplied to clients within committed time-frame.

Rectangular electric furnace with light weight and fast heating system, the body is constructed out of Mild steel sheet duly powder coated / Epoxy painted in beautiful attractive colours. Hinged door with high temp. ceramic wool insulation, With maximum temperature of 1200 oC and working temperature of 1150 oC, with ceramic wool insulation, controlled by digital temperature controller cum indicator, and suitable thermocouple. The control panel consists of On/Off switch, indicator lamps suitable to work on single phase 240V AC 50 Hz or 440 V AC 3 Phase.

Specifications:

Model

Size

Power KW

EMF-1H

100x100x225mm

2

EMF-2H

125x125x250mm

2.5

EMF-3H

150x150x225mm

3

EMF-4H

150x150x300mm

3.5

EMF-5H

225x225x300mm

4.0

Optional

  • Safety blind Controller
  • Digital Timer
  • Chamber Validation/ calibration
  • Door safety switch stops power to heating elements when door is opened.
  • Imported Microprocessor based PID Controller
  • Digital Microprocessor based controller with RS-232 & PC inter phase
  • Any other sizes can be supplied on demand
  • Higher temperature accuracy models can be supplied on demand
  • Fully Stainless steel model available on demand.
